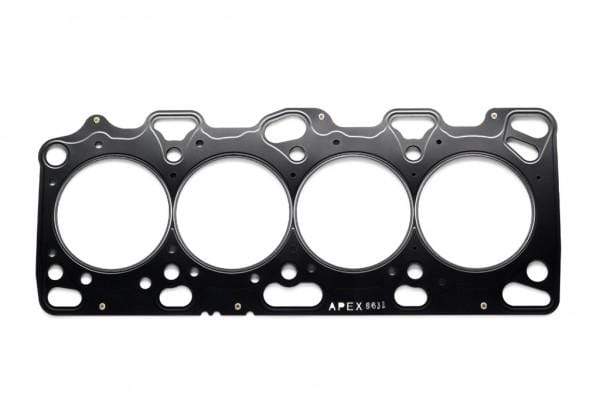

APEXi Engine Metal Head Gasket Mitsubishi 4G63, 86mm

Regular price
Sale price
Regular price
Sold out
Unit price
Shipping calculated at checkout.

The A'PEXi metal headgaskets provide upgraded protection on high horsepower engines. Factory headgaskets cannot withstand the pressures of high output operation and often cause the engine to "blow." This condition is actually caused by a failure in the factory headgasket. A'PEXi recommends replacing the factory headgasket with a metal one before gasket failure causes more damage to the engine. The gaskets are all designed engine specific and provide a complete and secure seal.

Bolt-On Yes
Part Number

814-M001 : T=0.8mm

814-M002 : T=1.1mm

Engine 4G63
Chassis CN9A, CP9A, CT9A
Gasket Type Grommet Type
Gasket Bore 86mm
Engine Bore Size (mm) 85mm (factory)
Gasket Thickness (mm)



Compression (Factory Head Gasket) 8.8
Compression (A'PEXi Head Gasket)

814-M001 : 8.8

814-M002 : 8.2
