Derale 16759 Adjustable Electric Fan Controller, Push In Radiator Probe

Derale

  • $58.79
    Unit price per
Shipping calculated at checkout.


Derale 16759 Adjustable Electric Fan Controller, Push In Radiator Probe

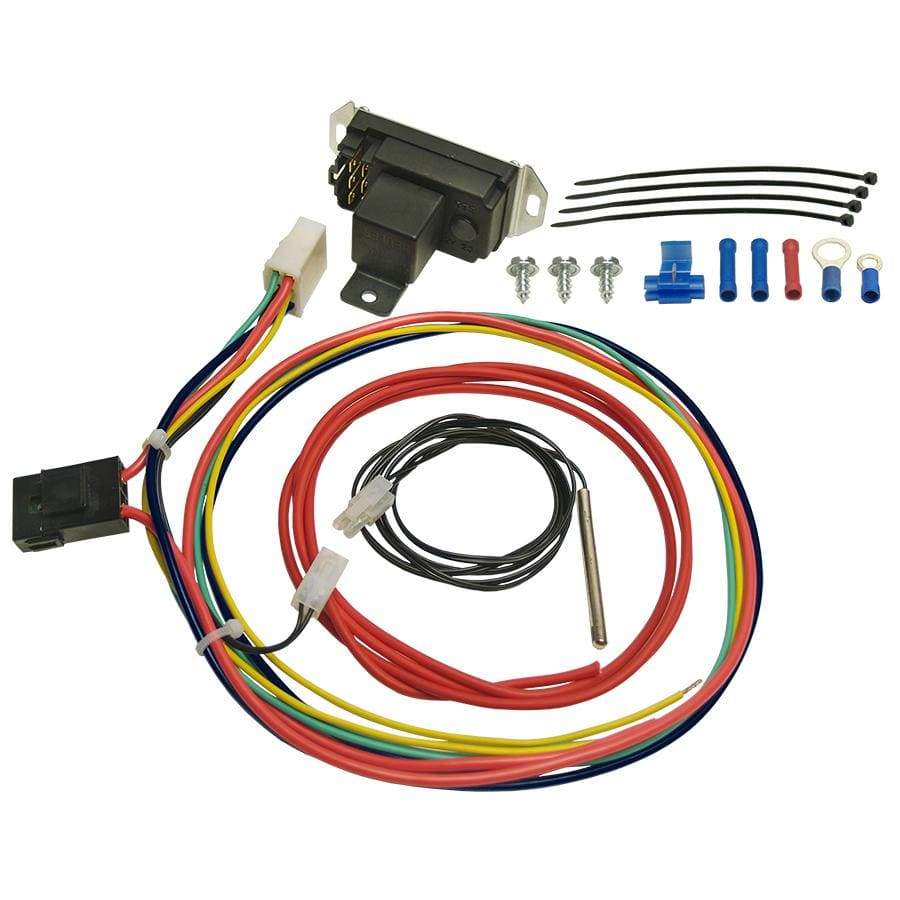

This newly redesigned adjustable electric fan control kit is designed to activate up to 2 fans with a total maximum draw of 25 amps. Includes a push-in radiator probe, relay wire harness and electrical connectors for an easy installation. A/C override circuit included. Adjustable fan controller turn-on range from 150°F - 240°F, and turn-off preset at 10°F lower than turn-on.

Specifications

specifications

Features
  • Adjustable turn-on temperature from 150-240°F
  • Turn-off temperature is preset at 10°F below turn-on temperature

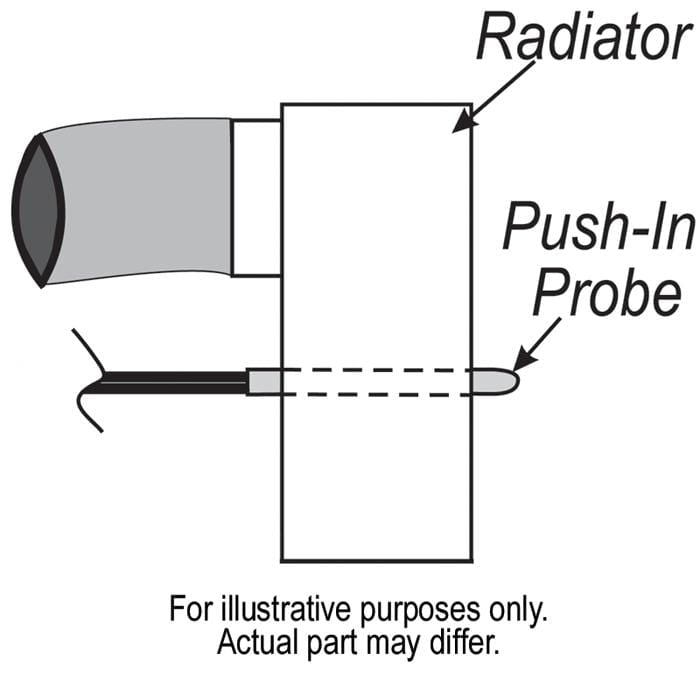

  • Push-in radiator temperature probe with thermostat sensor

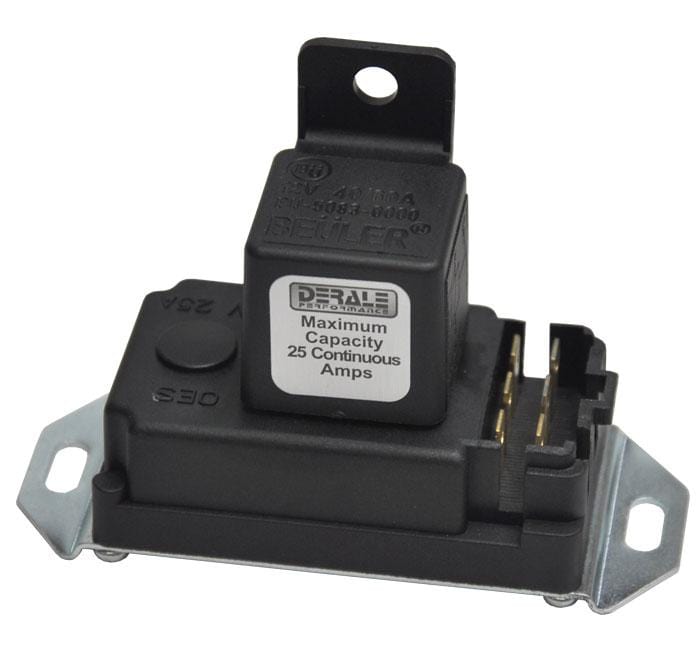

  • Heavy duty 40/60 amp relay *rated at maximum 25 amp continuous draw - operates a single fan or two fans with a combined draw of 25 amps or less
  • AC override circuit included
  • Ground circuit relay
  • Replacement push-in temperature probe with thermostat sensor Derale part number 16760
  • For a 3/8" NPT sensor option see Derale part number 16749
