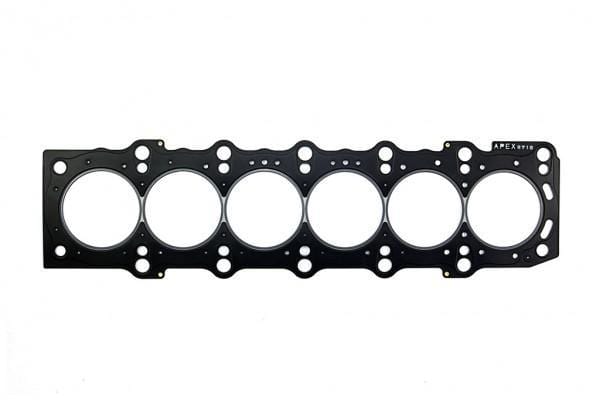

APEXi Engine Metal Head Gasket Toyota 2JZ-GTE Engine (JZA80, JZS147, JZS161) 88mm - 814-T10X

814-T105
Vendor
Apexi
Regular price
$331.55
Sale price
$331.55
Regular price
$349.00
Sold out
Unit price
per
Shipping calculated at checkout.

The A'PEXi metal headgaskets provide upgraded protection on high horsepower engines. Factory headgaskets cannot withstand the pressures of high output operation and often cause the engine to "blow." This condition is actually caused by a failure in the factory headgasket. A'PEXi recommends replacing the factory headgasket with a metal one before gasket failure causes more damage to the engine. The gaskets are all designed engine specific and provide a complete and secure seal.

Bolt-On Yes
Part Number

814-T105 : T=1.1

814-T106 : T=1.5

814-T107 : T=1.8

814-T108 : T=2.1

Engine 2JZ-GTE
Chassis JZA80, JZS147, JZS161
Gasket Type Stopper Type
Gasket Bore 88mm
Engine Bore Size (mm) 87mm (overbore)
Gasket Thickness (mm)

T=1.1mm

T=1.5mm

T=1.8mm

T=2.1mm
